Insulated Cabin 20ft

$4,900.00

Floor Plan F1 F2 F3 F4 F5

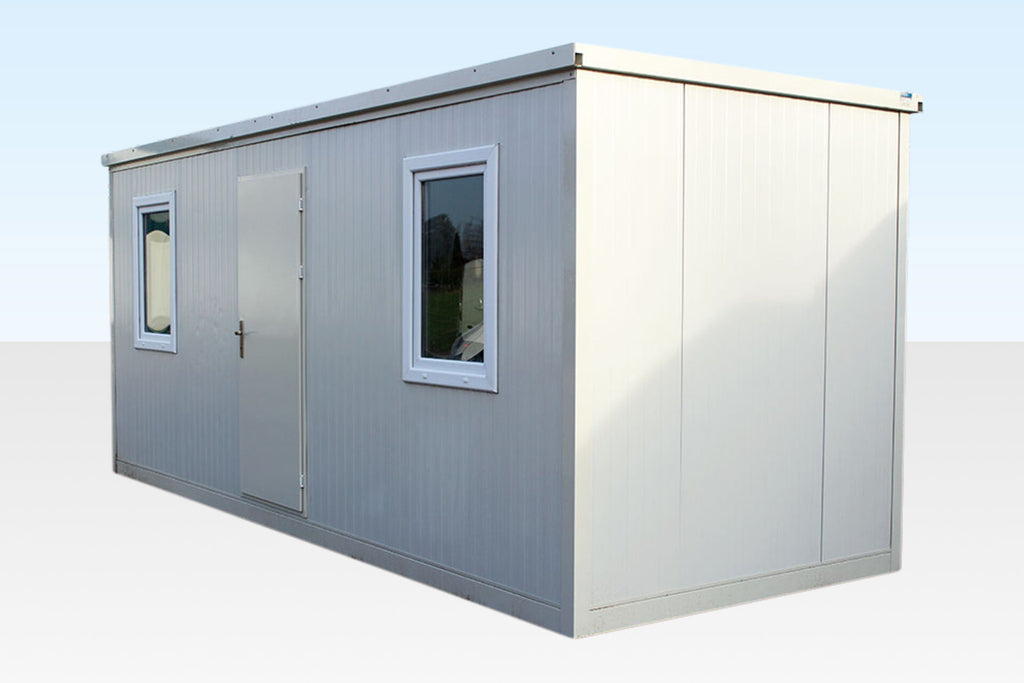

Insulated Cabins are an excellent solution for businesses that require a portable office space but have limited or restricted access to their intended location. These cabins are highly versatile and suitable for domestic, industrial, commercial, or agricultural applications.

One of the key advantages of Insulated Cabins is their ability to be delivered and installed in locations that are difficult to access with traditional pre-fabricated buildings. Certain sites may have weak or low bridges, overhead obstructions such as power lines, or narrow and restricted site entrances. In such cases, the cabins can be offloaded by a lorry-mounted crane as close as possible to the assembly area, or transferred onto a smaller vehicle or trailer capable of reaching the site.

Where required, the cabin can be transported and installed in modular sections. The unit can be unpacked and the floor fully demounted, allowing the individual components to be carried and assembled on site by a small team. This provides maximum flexibility for challenging access conditions.

Insulated Cabins offer a cost-effective solution for businesses seeking either temporary or permanent office space. They are designed for quick assembly and disassembly, making them ideal for operations that may need to relocate. In addition, the cabins can be customized to meet specific operational or layout requirements.

In conclusion, if you are looking for a portable, well-insulated office space that is easy to transport and assemble, Insulated Cabins are a reliable and practical choice. Their durability, flexibility, and cost efficiency make them suitable for a wide range of business applications.

Bathroom vanities, beds, and desks are not included.

Product Specifications

External Length (ft)
21.36

External Width (ft)
7.58

External Height (ft)
7.71

Internal Length (ft)
19.36

Internal Width (ft)
7.19

Internal Height (ft)
7.05

Door Width (ft)
2.59

Door Height (ft)
6.46

Height (Flatpacked) (in)
17.72

Length (Flatpacked) (ft)
21.33

Width (Flatpacked) (ft)
7.58

No. of Windows
2

Weight (Flatpacked) (lb)
2866

Weight Heaviest Part (when Demounted) (lb)
165

Floor Type
0.71 in Marine Plywood

Floor Loading
555 lb/ft2 evenly distributed

Internal Floor Covering
PVC Linoleum (flash point B1 difficult to burn, smoke density Q1)

Internal Wall Covering
24 gauges galvanized steel electrostatic powder coated in RAL9002

Insulation
2 in EPS insulation

Electrical Requirements. (Amps)
32amp
Features

Dimensions: 21.33ft x 7.58ft
Do-it-yourself assembly
No need for cranes
No specialized tools required for construction
Quick assembly time
Sturdy yet lightweight build
Ideal for hard-to-reach areas
Can be connected to create larger spaces
Fully insulated
Constructed with galvanized steel
Vinyl flooring
Two double-paned windows
Electric package available
Window guards optional
Color: White (RAL9002) and Moss Green

Setup Video

Frequently asked questions

Portable Pods are delivered through our in-house logistics network or authorized carriers to ensure safe and reliable transportation. Delivery timelines vary by location. Customers in Hawaii and Alaska must contact us before purchasing to confirm availability and delivery options.

Yes. Our portable pods are fully weatherproof and designed for outdoor use.They feature integrated rain gutters that actively channel water away from the roof and walls.

Yes. Our units are built with security as a priority. They feature anti-snap, anti-theft locking systems, heavy-duty steel doors, reinforced frames, and concealed locking points to prevent tampering. It extremely difficult to force entry. Combined with galvanized steel construction and reinforced wall columns, the units provide high-level protection for both residential and commercial use.

Snow load capacity: 80 lbs per square foot
Wind load rating: Up to 140 mph
They can be stacked up to 3 units even when they are fully loaded
Reinforced steel columns inside the walls and chassis for added strength

These units are engineered for durability and long-term use.

Yes. The units are designed with integrated lifting points and can be lifted and relocated even when fully loaded, using proper equipment. They can also be lifted or moved around with a forklift

No. A concrete slab is not required. As long as the ground is level and stable, the unit can be placed directly on gravel, grass, dirt, or similar surfaces.Each unit includes a free set of foundation pads to help with leveling. If needed, additional pads can be purchased from our driver at delivery.

The standard floor is OSB3 plywood, built for durability and moisture resistance.Optional top finishes include:

Black rubber protective layer
Diamond aluminum plate

2 key cylinder lockers and additional Padlock Locker for extra security

The units are built using galvanized steel, which offers excellent corrosion resistance and a lifespan of 20+ years under normal conditions.

Shipping containers and our storage units are designed for very different purposes.If you’re considering a shipping container, we recommend reading our blog post that explains the key differences in design, weight, usability, and cost so you can make an informed decision.

Weather-proof and lockable storage, engineered for strength, long-term use, and modern living.
